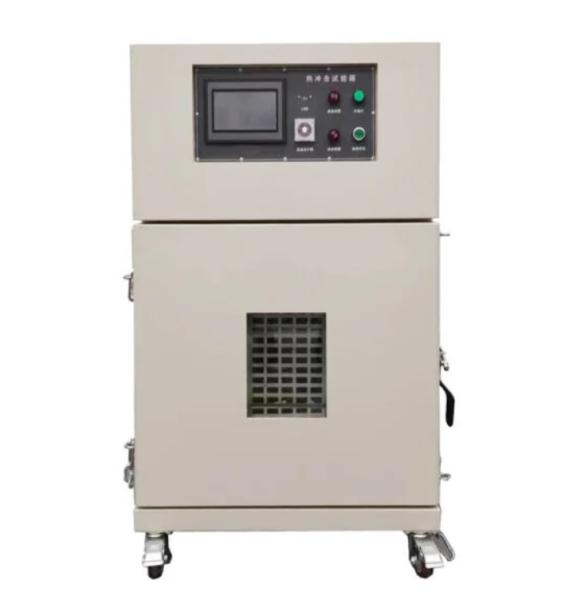

Thermal Abuse Test Chamber Lithium Battery Thermal Shock Test Chamber
Product Decription:
The Thermal Shock Test Chamber (Thermal Abuse) series of equipment is widely utilized in a variety of high - temperature impact tests, baking processes, and aging experiments. It is particularly suitable for applications in the fields of electronic instruments, materials, electrical engineering, vehicles, metals, and electronic products. This equipment plays a crucial role in accurately assessing the performance indicators of these products. By subjecting them to extreme thermal conditions, it helps in evaluating aspects such as material integrity, component functionality, and overall product durability.
Furthermore, it serves as an essential tool for quality management. The data obtained from the tests conducted using this equipment enables manufacturers to identify potential weaknesses in their products, optimize production processes, and ensure that the final products meet the highest quality standards. Whether it's for research and development purposes or for routine quality control in mass production, the Thermal Shock Test Chamber (Thermal Abuse) series provides invaluable insights and contributes significantly to enhancing product reliability and performance in diverse industries.
Meet the Standard:
GB 31241-2014 UN 38.3 MT/T 1051-2007 SJ/T 11169-1998(UL1642:1995) YD 1268-2003
GB/T 19521.11-2005 GB/T 18287-2013 SJ/T 11170-1998 (UL2054:1997) UL 1642
IEC62133-2012 GB/T 8897.4-2008(IEC 60086-4:2007) YDB 032-2009
YD/T 2344.1-2011 GB/T 21966-2008(IEC 62281:2004)
Chamber Structure:
1. Internal dimension: 500 (width) * 600 (depth) * 500 (height) mm;
2. External dimension is about 870 (width) * 720 (depth) * 1370 (height) mm, which is based on the actual object;
3. Control panel: the control panel is installed above the machine;
4. Opening mode: single door is opened from right to left;
5. Available window: with available window on the door, specification W200 * H250mm;
6. Inner material: 430# mirror panel, 1.0mm thick;
7. Outer material: cold rolled steel plate, 1.0mm thick. Powder baking varnish treatment (wrinkles gray);
8. Interlayer: the inner layer is divided into two layers and can be adjusted. The first layer is 100mm from the bottom, and the above layer is divided equally, with 2 pieces of screen plates;
9. Insulation material: high temperature rock wool, good insulation effect;
10. The sealing material is: high temperature resistant foaming silica gel strip;
11. Test hole: one test hole is opened on the right side of the machine, with an aperture of 50mm;
